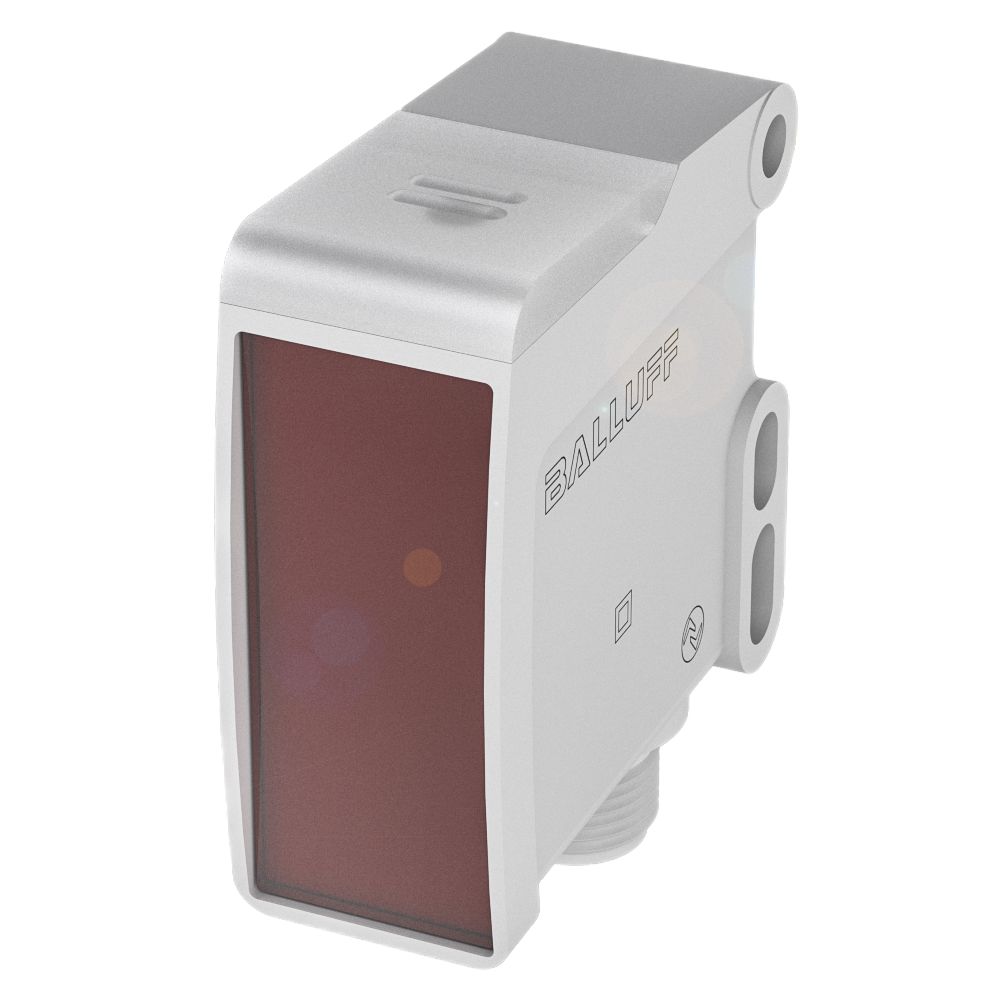

Capteur optoélectronique BOS0288

Capteur optoélectronique, Special characteristics = Washdown Plus, Washdown, Série = R254K, Dimensions = 20.4 x 60.3 x 49.5 mm, Interface = IO-Link 1.1 Analogique, courant 4…20 mA Pin 4: Push-pull Contact à ouverture/fermeture (NO/NF) Pin 2: PNP/NPN/push-pull Contact à ouverture/fermeture (NO/NF), Principe de fonctionnement = Capteur optoélectronique, Principe de fonctionnement optique = Barrage optique unidirectionnel (récepteur), Type de lumière = Lumière rouge, Portée = 0…20 m, Raccordement = Connecteur, connecteur mâle M12x1, 4 pôles, Matériau du boîtier = PA 12 PA PACM 12, Face sensible, matériau = PA PACM 12, Tension d’emploi Ub = 10…30 VDC, Homologation / conformité = CE, UKCA, cULus, WEEE, Ecolab, Secondary features = Identification, Device Discovery, Switching Profiles, Signal Quality Monitoring, External Signal Blanking, Signal Delay, Signal Speed Monitor, Switching Counter, Basic Statistics, Logic Blocks, Operating Hours Counter, Boot Cycle Counter, Voltage and Current Monitoring, Extreme Environment Status, Storage Usage Monitoring, Variant Configuration, Pin Assignment, Secondary features for condition monitoring = Vibration monitoring, Inclination monitoring and installation aid, Internal temperature monitoring, Internal humidity detection, Fourniture = Indication pour le montage
